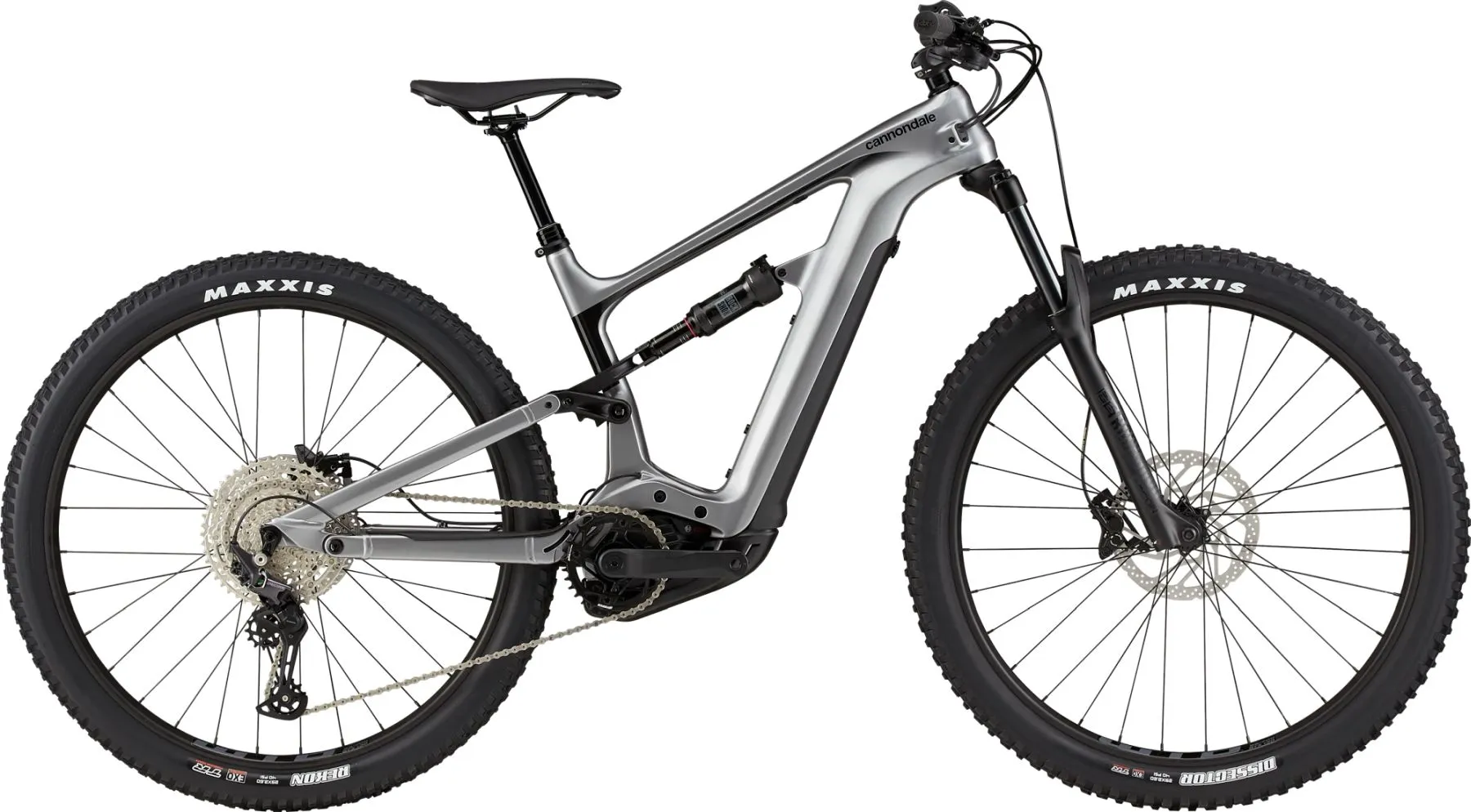

We took our most fun trail bike and put a motor in it. It’s play time.

Where it thrives

Challenging trails, up and down hills

What it's built for

Traction, efficiency, handling

Features

• Proportional Response
• Tuned Carbon frame, 130mm / RockShox Recon SIlver RL,
• 140mm fork Shimano drivetrain
• TBA / SRAM Level hydraulic disc brakes
• Bosch Performance Line CX drive unit / 625Wh battery /
• Range: up to 78km (48mi)

Specifications

• Chain: Shimano Deore 12-speed
• Crank: FSA Bosch E-Bike w/ custom Ai offset, 34T
• Rear Cogs: Shimano Deore M6100, 10-51, 12-speed
• Rear Derailleur: Shimano Deore M6100
• Shifters: Shimano Deore M6100, 12-speed
• Fork: RockShox Recon SIlver RL, 140mm, DebonAir, 15x110, tapered steerer, 51mm offset

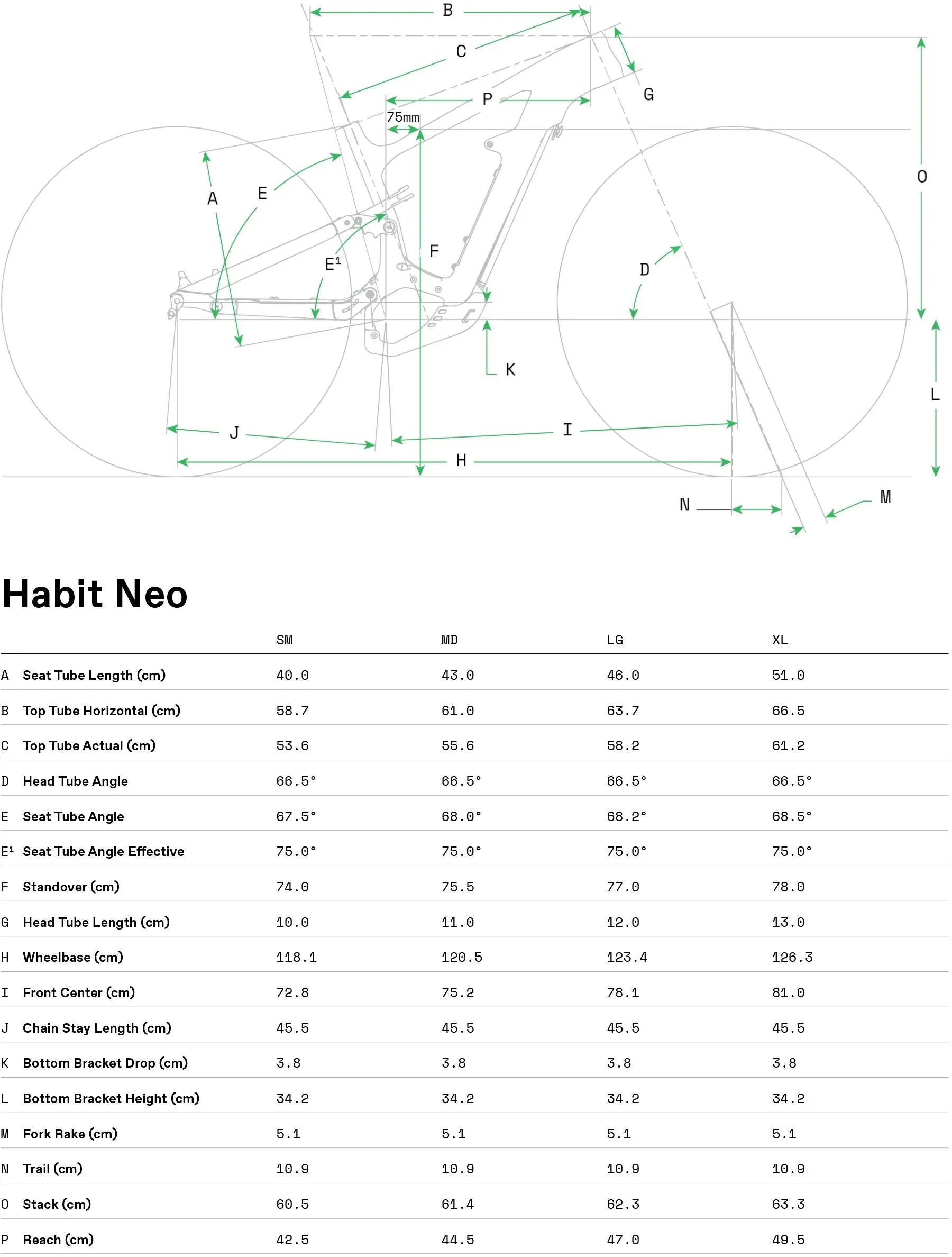

• Frame: 130mm travel, BallisTec Carbon Front Triangle, SmartForm C1
• Alloy Swingarm, alloy skid plate, Ai offset drivetrain
• Headset: Integrated Sealed Bearing, Tapered
• Rear Shock: RockShox Deluxe Select R, DebonAir
• Front Hub: Formula DC-511, 15x110
• Rear Hub: Shimano FH-MT410-B, 12x148
• Rims: WTB STX i30 TCS, 32h, tubeless ready
• Spokes: DT Swiss Champion
• Tire Size: 2.6
• Tires: (F) Maxxis Dissector, 29 x 2.6", EXO casing, tubeless ready / (R)
• Maxxis Rekon, 29 x 2.6", EXO casing tubeless ready
• Wheel Size: 29
• Brake Levers: TRP hydraulic disc
• Brakes: TRP Slate G4 4 Piston hydraulic disc, 200/200mm rotors
• Grips: Fabric FunGuy
• Handlebar: Cannondale 3 Riser, 6061 Alloy, 15mm rise, 8° sweep, 4° rise, 780mm
• Saddle: Fabric Scoop Shallow Sport, steel rails
• Seatpost: TranzX dropper, internal routing, 31.6, Drop: 125mm (SM), 130mm (MD, LG, XL)
• Stem: Cannondale 3, 6061 Alloy, 31.8, 0°

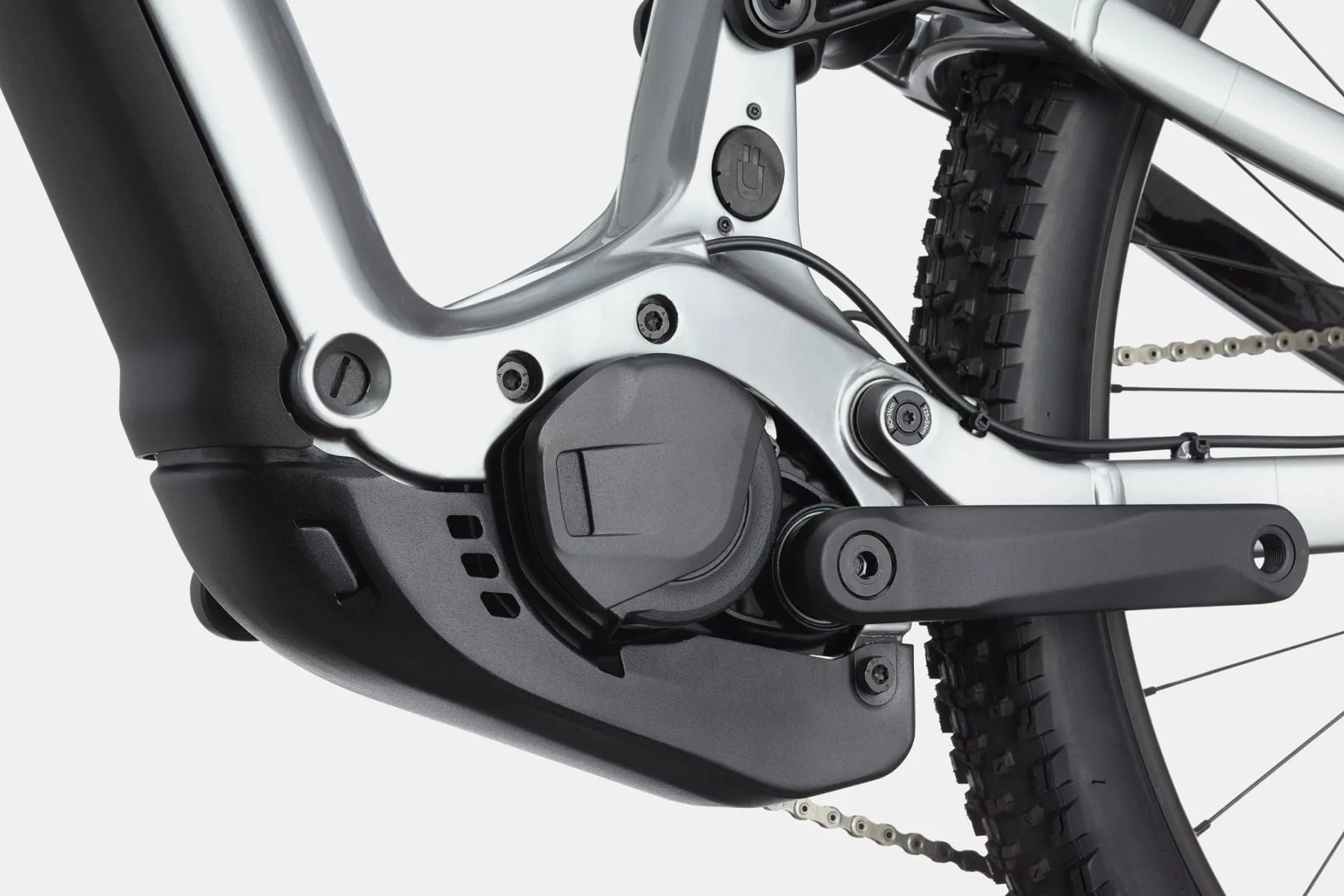

• E-System Drive Unit
• Bosch Performance Line CX 250W
• E-System Battery: Bosch Powertube 625Wh
• E-System Charger: Bosch 4A
• E-System Display: Bosch Purion
• Extra 1: Preinstalled light cables
