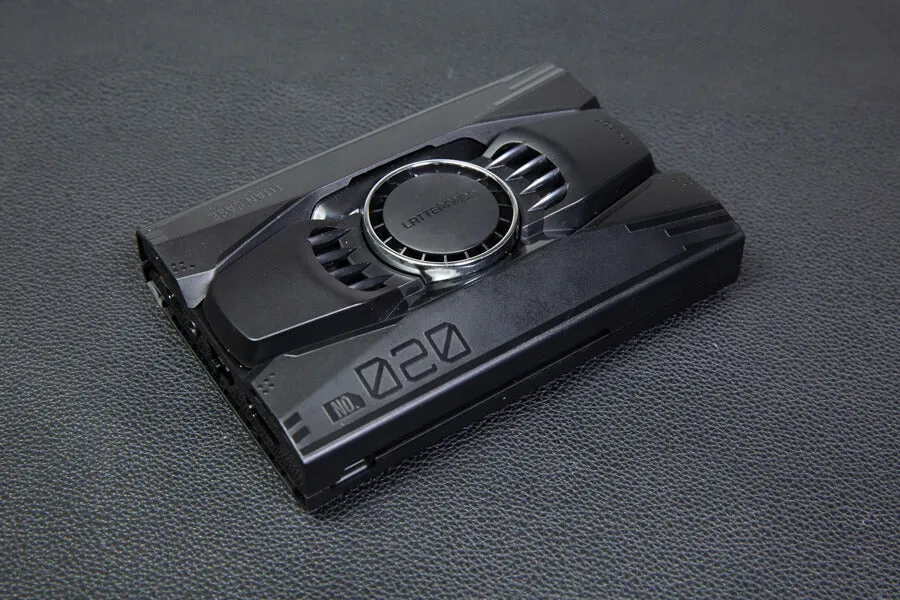

DFRobot Pocket-sized Windows/Linux Mini PC (8GB RAM/64GB eMMC)

$ 64.79

$ 49.84

Taxes and shipping calculated at checkout

Title

Localstock Overseasstock

Please select combo product attributes

The combo subtotal is $,SAVE $

Unavailable

Quantity - +

ADD TO CART

BUY IT NOW

This mini PC kit includes and .

Features:

Enhanced CPU performance, it features the Intel 11th generation mobile quad-core processor N5105 and offers significantly improved performance.

Upgraded to 8GB RAM and 64GB eMMC, substantial high-bandwidth RAM and speedy solid-state drive to smoothly run your multiple applications at once, and ensure seamless performance and reliable multitasking.

ULTRA-FAST connectivity: With a lightning-fast Wi-Fi 6 and Gigabit Ethernet, stream videos or download massive files quickly

Higher data transfer rate: 1 x USB3.2 gen2, 2x USB 3.2 gen1, and 1x USB Type C for high data transfer speed, up to 10X faster than USB2.0

Support Dual 4K HDR and 3-Way Video Output, including HDMI, Display port over USB-C, and eDP for superb flexibility

Rich IOs and Integrated Arduino Coprocessor ATmega32U4, compatible with 200 sensors and actuators

Support Windows(Win 10 and Win 11) & Linux OS

Applications:

Home Theater

Mini Game Console

4K Portable Video Streamer

Monitoring System

Specification:

CPU: Intel® Celeron® N5105

Core: 2.0~2.9GHz Quad-Core, Four-Thread

Graphics: Intel® UHD Graphics (Frequency: 450 – 800MHz)

Memory: LPDDR4 8GB 2933MHz

Storage: 64GB eMMC V5.1

Expansion Slots:
1x M.2 M Key, PCIe 3.0 2x, Supports NVMe SSD
1x M.2 B Key, USB 2.0, USB 3.0, SIM, SATA(Option support PCIe 3.0 1x), Supports 4G & 5G module

Connectivity:
  1x Wi-Fi 6 @ 2.4GHz &5 GHz(160MHz)
  1x Bluetooth 5.2
  1x Intel Gigabit Ethernet

USB Ports:
  2x USB 3.2 Gen1 Type A
  1x USB 3.2 Gen2 Type A
  1x USB Type C, Supports PD, DP, USB 2.0
  1x USB 2.0 Pin Header

Display:
  1x HDMI 2.0b: Up to 4096x2160 @ 60Hz HDR
  1x DP 1.4: Up to 4096x2160 @ 60Hz HDR
  1x eDP: Extendable Touch Displays up to 1920*1080

TPM: built-in TPM(2.0)

Co-processor: Arduino Leonardo ATMEGA32U4

Audio: Microphone Headphone Combo Connector

GPIO & Other Features:
  12x Analog Inputs*
  Up to 23x Digital Input/Output (7 PWM)*
  1x UART
  1x I2C
  1x SPI
  1x Audio Connector
  1x 4-Pin RS232 Header
  1x Fan Port (4 Pin 1.25mm PWM 5V
  1x 4-Pin Header (Power and Switch)

OS Support:Windows 10 & Windows 11 & Linux

Dimension: 125 x 78 x 16mm

Operating Temperature: 0°C~75°C

Projects:

Project 1:

Introduction: This is a unboxing video, it goes over the specs, and tests some 4k Video playback, PC gaming, and emulation like PSP, PS2, Gamecube, and WiiU.

Project 2:

Introduction: LattePanda 3 Delta single board computer review, including full specifications, demos running Windows 10 and Linux Mint 21, and some speed tests.

Project 3:

Introduction: This video uses the new LattePanda 3 Delta to build a Cyberdeck that packs up into a rugged, waterproof case that you can take with you almost anywhere.

Project 4:

Introduction: Made a mini PC based around LattePanda 3 Delta entirely from scratch.

Project 5:

Introduction: Hey Guys, in this video I'll show you how i made this Mini Computer and i try to give it the look of an Apple Mac Pro. i hope you will like it. .

Documents:

Product Includes:

LattePanda 3 Delta Single Board Computer x1

Active Cooling Fan (Assembled) x1

45w PD Power Adapter (with EU & US Standard Power Cord) x1

Dual-band Antenna x2

RTC Battery (Assembledx 1

User Manual x 1

Titan case x1

M3 screws x6
