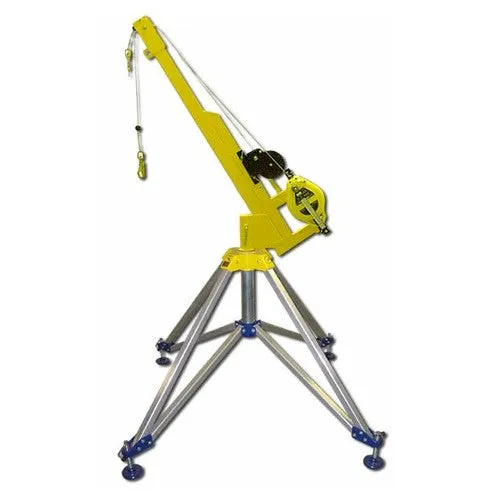

The FrenchCreek QuadPod Davit System is rugged and versatile. It is a great alternative to a normal tripod rescue system. Anywhere a tripod system can be used, the Quadpod should be considered. It's 4-legged base provides superior stability. And given it's 54" clearance between each leg, it might also be ideal for setting up at the corner of larger confined space entry points. The QuadPod system comes with both the 3-way winch and a material winch. Download Datasheet and Manual below for more info.

Specs for the QuadPod:

• Overall Height: 94"
• Davit Arm Reach From Center: 26"
• Interior Distance Between Feet When Setup: 54"
• Adjustment Increments: 3/8" to 5"
• Base Weight: 75 lb
• Davit Arm Weight: 49 lb

Specs for the 3-Way Winch:

• Capacity: 350 lbs
• Housing: Aluminum
• Rope Drum: Aluminum
• Brake Pawls: Bronze
• Main Spring: Steel
• Fasteners: Stainless Steel
• Snap Hook: RL-28 Plated Steel swivel snap hook with a ¾" gate with a impact indicator
• Wire Rope: 3/16" 7 x 19 galvanized

Specs for Material Winch:

• Housing: Plated Steel
• Drive Gear: Plated Steel
• Non-Drive Gear: Plated Steel
• Ratio: 5.1:1
• Capacity:
• Materials: 500 lbs
• Personnel: 350 lbs
