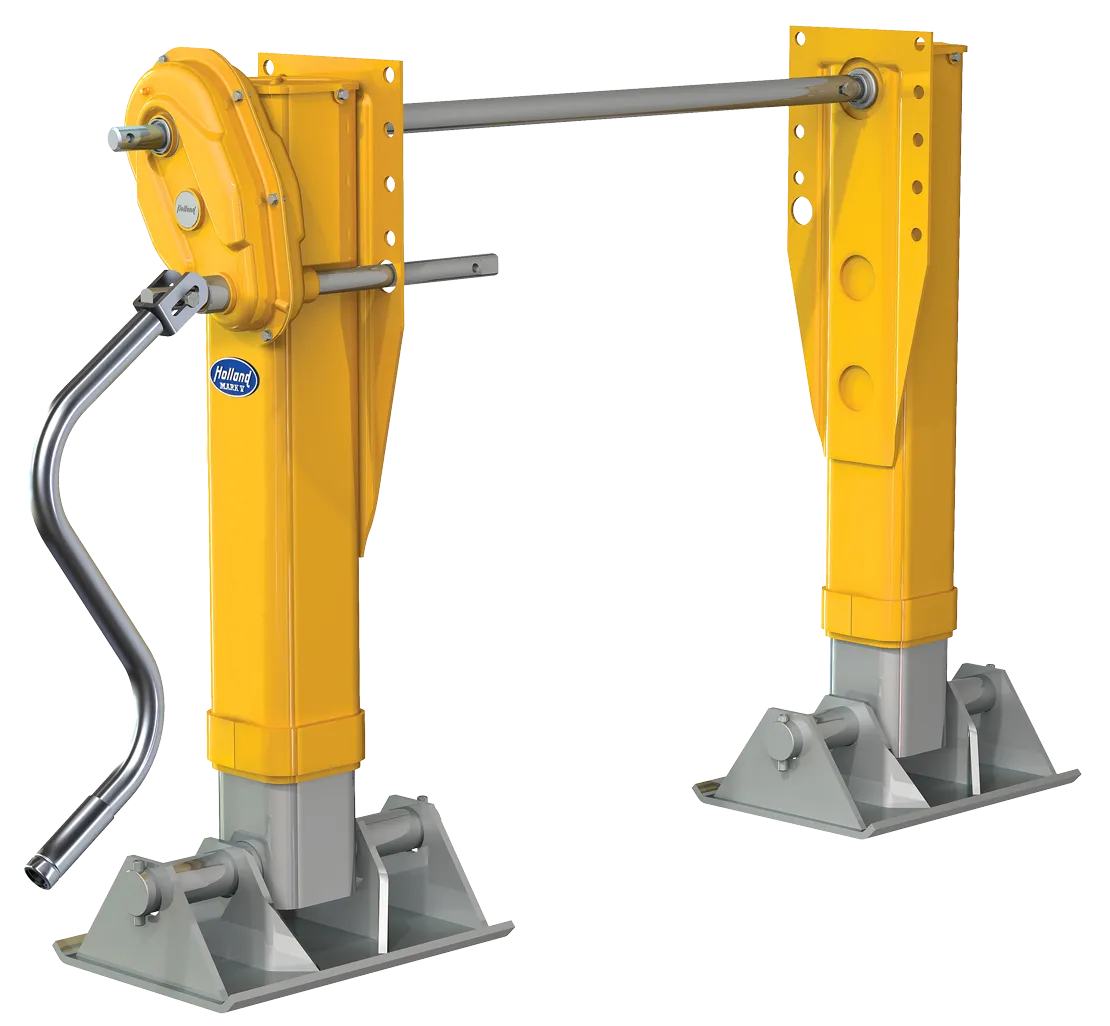

Mark V 16.5" Standard Sand Shoe Landing Gear HOLLAND

HOLLAND MARK V HEAVY-DUTY -

LIFT CAPACITY: 62,500 lbs. at 100 ft.-lbs. input torque
ULTIMATE LOAD CAPACITY: 200,000 lbs.
SIDE-LOAD CAPACITY: 46,000 lbs.
GEAR RATIOS vs. TURNS PER INCH: Low Gear = 33.8, High Gear = 2.5

Sold as Complete Set, Gearside & Non-Gearside

*Complete Set purchase includes landing legs, corss drive shaftm crank handle, crank hanger, and brace ears (2)

Sharing all the same rugged operational features as the HOLLAND standard MARK V™ landing gear, the Mark V™ Heavy-Duty takes durability up a notch or two. The one piece inner tube of the Mark V™ Heavy Duty gives it the increased strength to handle up to 46,000 lbs. of side load capacity. A wider upper leg tubing collar and the heavy duty tapered mounting plate adds structure and stability when it’s needed the most.
