Product Details
＋

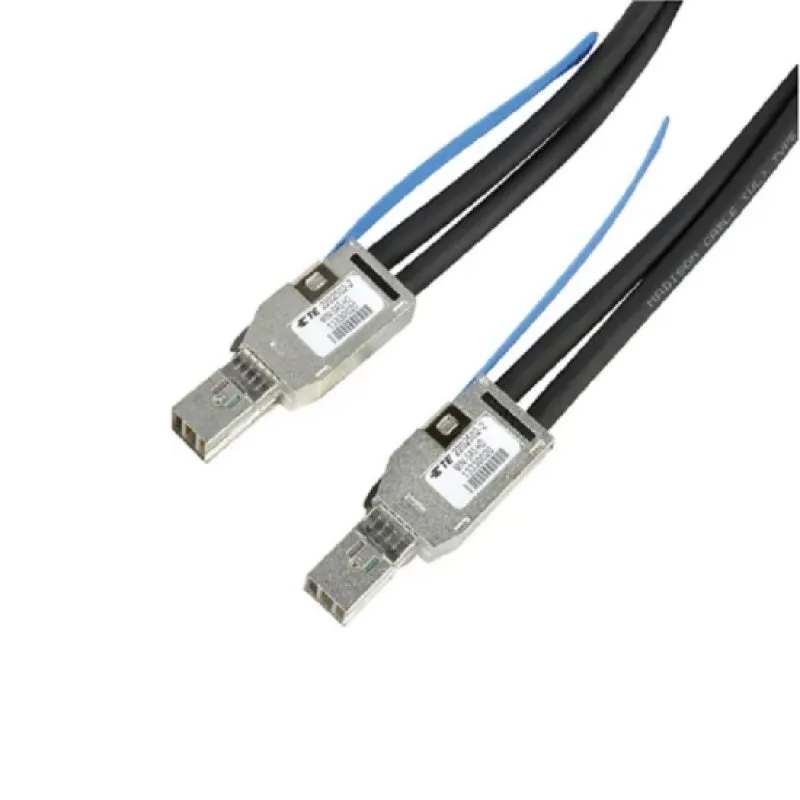

TE’s Mini SAS HD receptacle assembly is the next-generation SAS high-density high-speed IO interface. This interface was adopted for the SAS 2.1 standard and proposed for SAS 3.0 standard, and is designed to support 6G and future 12G SAS applications. The passive Mini SAS HD copper cable assembly is designed for broadband operation optimized for 6 and 12 Gbps. The EEPROM signature enables the host to identify what type and length of cable is connected to its port, and can be customized for any application. An improved latch design reduces the insertion force and increases the retention force.
Specifications:

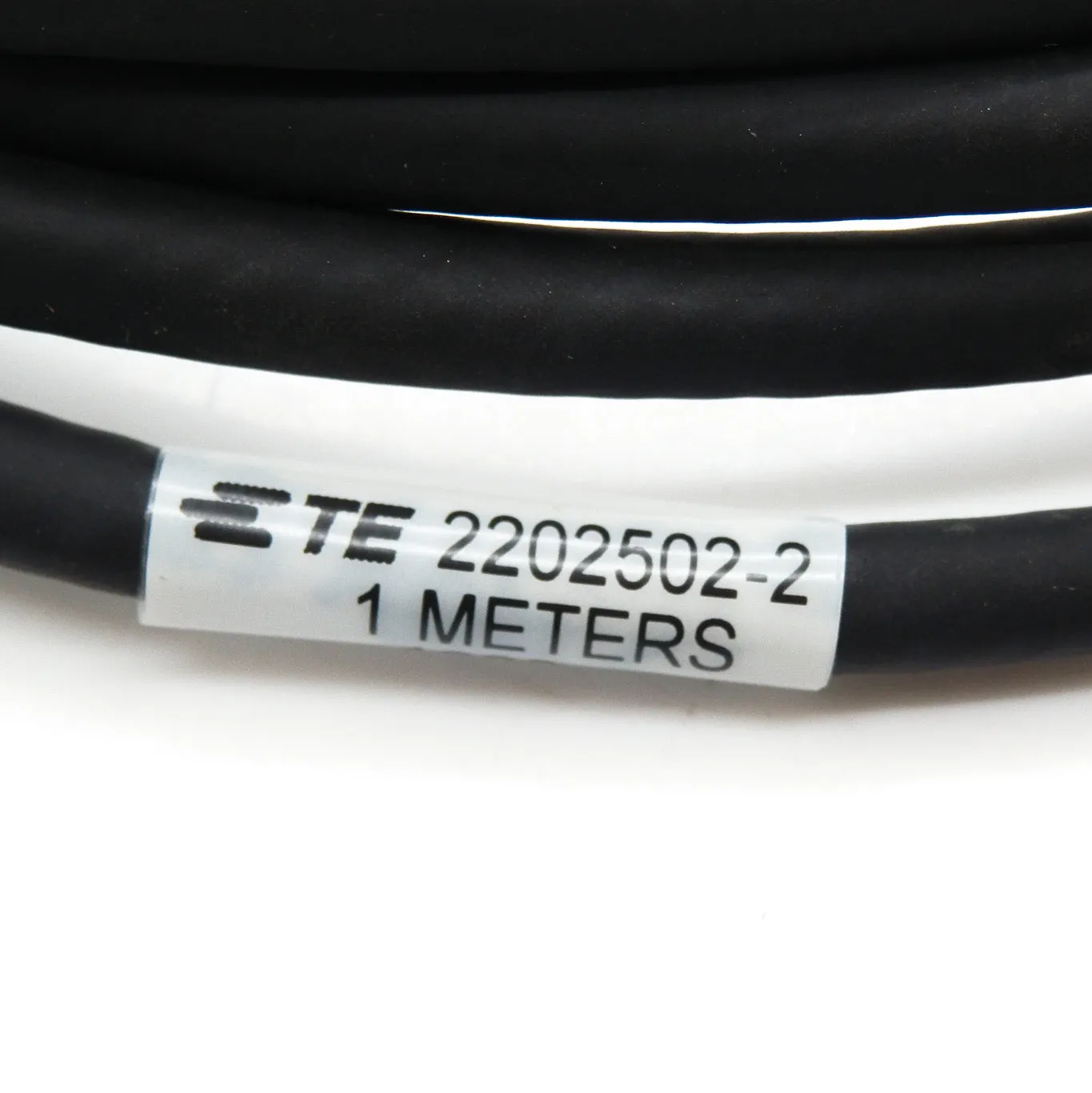

- Cable Length: 1 m
- Connector Angle Cable end 1: Straight
- Connector Angle Cable end 2: Straight

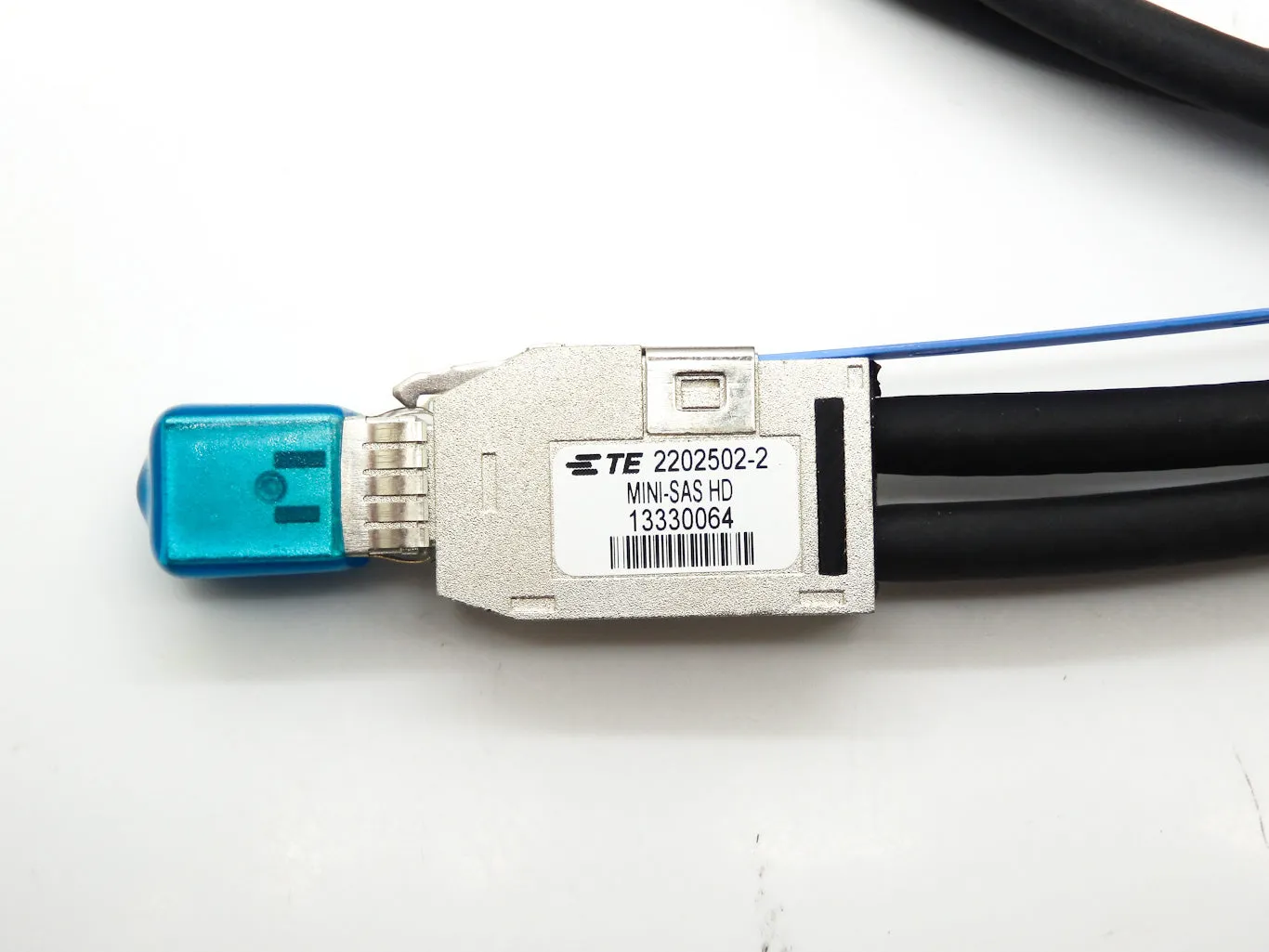

- Connector Type Cable end 1: Mini-SAS HD
- Connector Type Cable end 2: 4x MiniSAS HD
- Jacket Color: Black
- Number of Conductors: 16
- Type: SAS / Mini-SAS Cables
