Product Details
＋

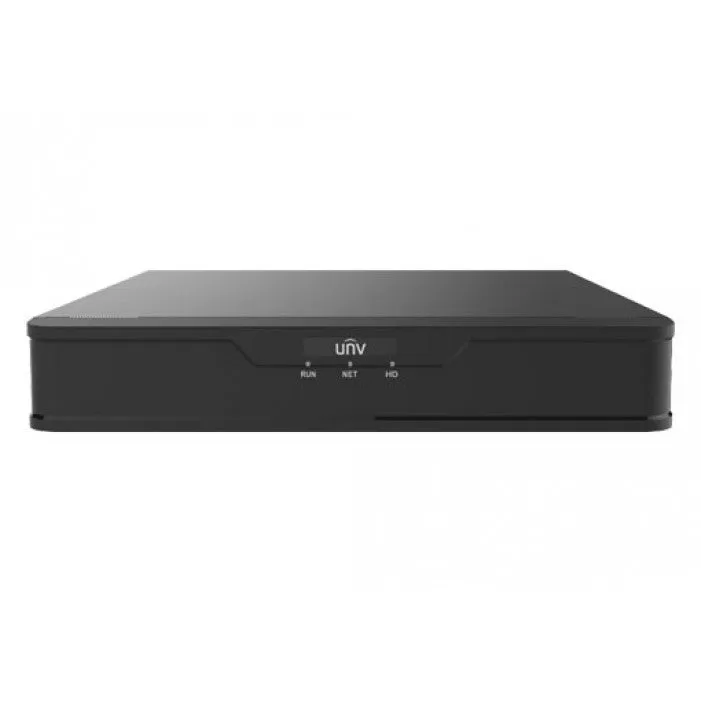

The XVR301-16G from Uniview is a 16 channel 1 SATA XVR, no HDD.
Features
- Support H.265/H.264 video formats
- Support audio over coaxial cable
- Support TVI, AHD, CVI, CVBS, IP cameras with adaptive access
- 16-channel BNC input
- Support 1-ch HDMI output, 1-ch VGA output at up to 1920*1080
- Long transmission distance over coaxial cable
| Product SKU | XVR301-16G |
|---|---|
| Brand | Uniview |
| Condition | New |
| Resolution | 5MP Lite/4MP Lite /1080P/1080P Lite/720P/D1/CIF |
| Compression Supported | Yes |
| Operating temperature | -10°C ~ 55°C ( 14°F ~ 131°F ) |
| IP Channels | 16 Channels |
| Harddrive Size | No HDD |
| Protocols | Uniview Protocols |
| Features | Audio, Compression Supported, H.264 Compression, H.265 Compression, HD Resolution, Supports the Full HD Output (HDMI), Two-way Audio |
| SATA | 1 SATA interface |
| Audio | 1-ch, RCA |
| Compression | H.265, H.264 |
| Bandwidth | Incoming Bandwidth: 40Mbps (up to 56Mbps after all analog camera conversion), Outgoing Bandwidth: 64Mbps |
| Dimensions | 260mm ×240mm× 46mm (10.2" × 9.4"×1.8") |
| Voltage | 12VDC |
| Power Consumption | ≤ 10 W (without HDD) |
| Network | 1 RJ45 10M/100M self-adaptive Ethernet Interface |
| USB | Rear panel: 2 x USB2.0 |
| HD Resolution | Yes |
| Supports the Full HD Output (HDMI) | Yes |
| Two Way Audio | Yes |
| H.264 Compression | Yes |
| H.265 Compression | Yes |
